Wood Drying Kiln, Kiln Drying System
Wood drying kilns are a kind of large-scale drying equipment in industrial production. This wood treatment equipment is also called wood seasoning kilns, lumber drying kilns and timber drying kilns. We mainly provide hardwood drying kilns and softwood drying kilns.
-
- Hardwood Kiln Hardwood drying kilns can be used as furniture wood drying equipment and industrial wood drying equipment. Hardwood drying kilns are also called hardwood lumber kilns. The drying schedules of hardwood lumber kilns usually keep the temperature of the dry bulb below 70 °C.
-
- Softwood Kiln Our softwood drying kilns adopt international advanced technology. Compared with common drying equipment, our softwood drying kiln has faster drying speed and shorter drying time.
The body of our all aluminum alloy wood drying kiln is consisted of inside wall and exterior wall aluminum plates, heat insulating layer, upright post and girder grillage. The plates of inside wall and exterior wall adopt 1.2 mm 3003 type high corrosion resistance aluminum alloy plate. The heat insulating material adopts centrifugal glass wool board. The upright post and girder grillage adopt special-shaped aluminum alloy sections. This wood drying kiln is especially suitable for cold regions such as Russia. The thickness of the kiln roof is up to 150mm and can support 300-400kg/ m2 snow load. The wall thickness of the kiln is 150mm and can work normally in the temperature range from 30 degrees below zero to 50 degrees below zero.
Description of Our Wood Drying Kiln
- Our wood drying kilns adopt full-automatic or semi-automatic control system.
- The body of our drying kiln is all aluminum alloy body or earth building kiln body.
- The kiln door is suspended type or the type that one faces the other when opening, with high sealing, so the door is of convenient opening and high flexibility.
- The material feeding way is forklift feeding or small rail car feeding.
- The heating medium of our wood drying kiln is steam, high temperature water, heat conduction oil, burner gas or electricity.
Features of Wood Kilns
- Our kiln drying system can be custom designed with the circulating fan and electric heater according to the specific needs and the wood to be treated, ensuring low thermal energy consumption and a high level of energy efficiency.
- Comparing with vacuum dyers and HF wood dryers, lumber kilns provide many benefits with lower investment.
- The wood waste from the plant can be burned to serve as an energy source, contributing to environmental protection.
- The moisture can be controlled by steam or cold water spray during the drying of lumber, ensuring high lumber drying quality.
- The wood drying equipment is made of aluminum plate, ensuring high durability, light weight and corrosion resistance.
- Featuring modular construction, it’s easy to transport and install the lumber kilns.
- The lumber kilns can be individually used or matched with wood production lines.
Working Process of Wood Drying Kiln

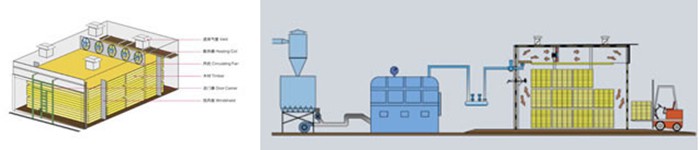

The strap materials produced in the wood working process is collected into the storage hopper. Then the wood strap materials is conveyed to the combustion furnace at a fixed amount and burned. The steam, high temperature water and the heat conduction oil or the burner gas produced in the combustion furnace will be transported to the wood drying kiln used to supply heat.
Applications of Wood Drying Kilns
Since our wood drying kilns have the features of fast improvement of temperature, energy-saving and clean hot wind, they are also an ideal plant heating equipment of furniture factories and an ideal stoving varnish equipment in paint room. If the installation location is available, a wood drying kiln can be used as a heating equipment for a small workshop or a paint room.
Made-to-Measure to Meet Your Requirements
No matter how much timber you need to dry at one time, from 10m3 till 200m3, we will always have the most suitable kiln for you.
Main Technical Parameters (Common Sizes of Kiln purchased)
| Model | Kiln Capacity(m³) | Kiln Size(m) | Installed Power(kW) | Energy Consumption(Kcal) |
| FW20 | 20 | 4.3×4.8×5.6 | 6 | 6～8 |
FW30 | 30 | 4.3×5.6×5.6 | 6 | 8～10 |
FW40 | 40 | 4.3×6.6×5.6 | 9 | 10～12 |
FW50 | 50 | 6.4×6.0×5.6 | 9 | 12～15 |
FW60 | 60 | 6.4×6.6×5.6 | 9 | 15～18 |
FW80 | 80 | 9.0×6.6×5.6 | 15 | 18～20 |
FW100 | 100 | 9.0×8.0×5.6 | 18 | 20～25 |
FW150 | 150 | 13.0×8.0×5.6 | 24 | 30～45 |
Forwood Wood Drying Equipment Company is a major manufacturer and supplier of wood drying kilns in China. Our drying kilns are numerous in variety and can meet different production needs, so they are welcomed by customers. Besides wood drying kilns, we also produce thermally modified wood kilns, thermally modified tanks, indirect-fired heating wood kilns and other related products. If you want to know more information about our wood drying equipment, we welcome you to contact us directly! We will provide satisfying service for you.
