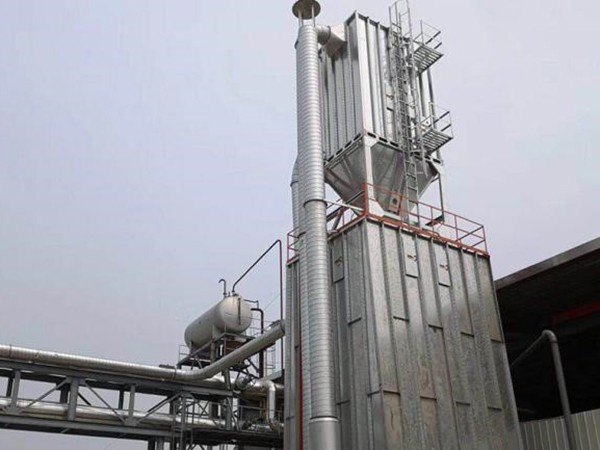

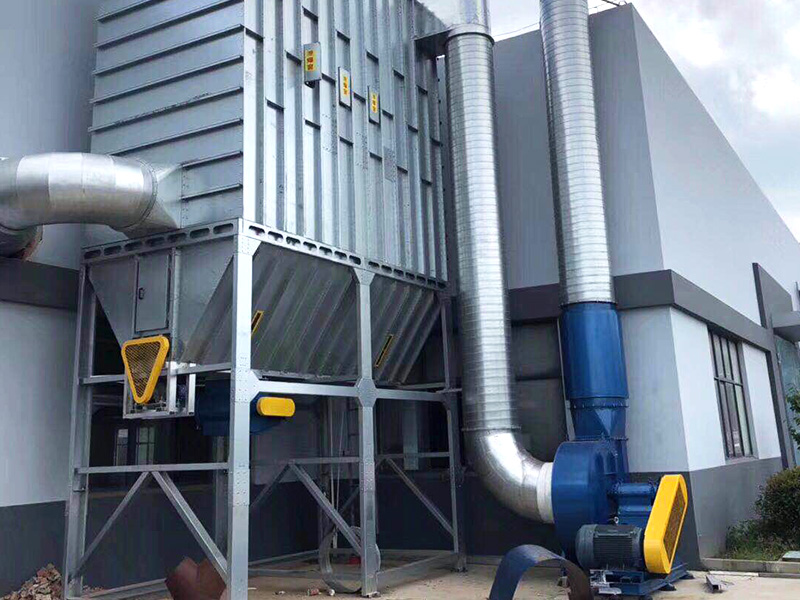

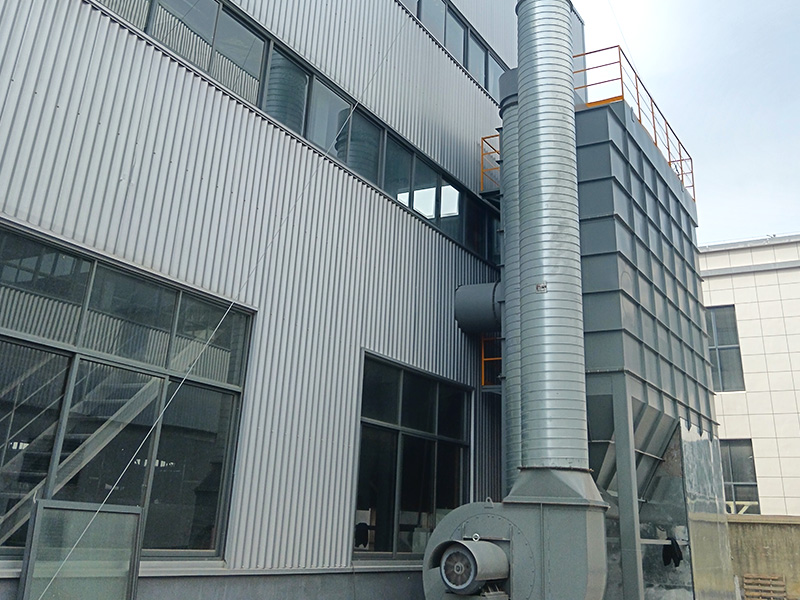

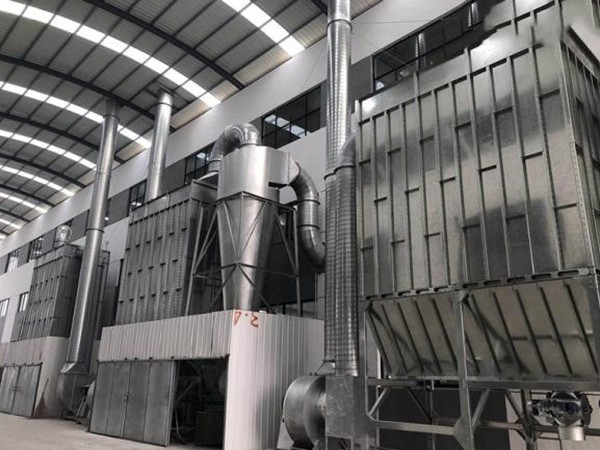

Pulse-Jet Bag Filter Dust Collector, Inertial Separator
The pulse-jet dust collector works with inertial separation and bag filtration to achieve high filtration efficiency. According to the material characteristics, the dust control system can be custom designed and manufactured. The baghouse dust collectors are suitable for handling:
- wood dust such as sawdust, wood shavings from the furniture, flooring and plywood production line
- fine dust from wood processing including sawing, sanding
- particulate matter in the mining, cement and coal industry
- Model:
BGD128
- Air Volume (m³/h): 12000-18000
- Filtration Area (m³): 96
- Efficiency (%): ＞99.5
- Static Pressure (Pa): 1200-1500
- Motor Power for Discharge (kW): 1.5
- Compressed Air Consumption (m³/min): 0.4
- Total Weight (kg): 4900
- Model:
BGD160
- Air Volume (m³/h): 18000-23000
- Filtration Area (m³): 120
- Efficiency (%): ＞99.5
- Static Pressure (Pa): 1200-1500
- Motor Power for Discharge (kW): 1.5
- Compressed Air Consumption (m³/min): 0.6
- Total Weight (kg): 5400
- Model:
BGD200A
- Air Volume (m³/h): 23000-33000
- Filtration Area (m³): 190
- Efficiency (%): ＞99.5
- Static Pressure (Pa): 1200-1500
- Motor Power for Discharge (kW): 1.5
- Compressed Air Consumption (m³/min): 0.7
- Total Weight (kg): 6450
- Model:
BGD200B
- Air Volume (m³/h): 33000-40000
- Filtration Area (m³): 226
- Efficiency (%): ＞99.5
- Static Pressure (Pa): 1200-1500
- Motor Power for Discharge (kW): 1.5
- Compressed Air Consumption (m³/min): 0.7
- Total Weight (kg): 6900
- Model:
BGD200C
- Air Volume (m³/h): 40000-54000
- Filtration Area (m³): 320
- Efficiency (%): ＞99.5
- Static Pressure (Pa): 1200-1500
- Motor Power for Discharge (kW): 1.5
- Compressed Air Consumption (m³/min): 0.7
- Total Weight (kg): 8200
| Model | BGD128 | BGD160 | BGD200A | BGD200B | BGD200C |
| Air Volume(m³/h) | 12000-18000 | 18000-23000 | 23000-33000 | 33000-40000 | 40000-54000 |
| Filtration Area(m³) | 96 | 120 | 190 | 226 | 320 |
| Efficiency(%) | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 |
| Static Pressure(Pa) | 1200-1500 | 1200-1500 | 1200-1500 | 1200-1500 | 1200-1500 |
| Motor Power for Discharge(kW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Compressed Air Consumption(m³/min) | 0.4 | 0.6 | 0.7 | 0.7 | 0.7 |
| Total Weight(kg) | 4900 | 5400 | 6450 | 6900 | 8200 |
Features of Dust Collectors
- The bag filter dust collector can easily separate particulate matter with a diameter of less than 10μm.
- With high filtration capacity, it’s able to handle mixed air/gas stream with high dust concentrations.
- The dust collection system conforms to international emission standards.
- Designed with modular construction, it’s easy to assemble and detach.
